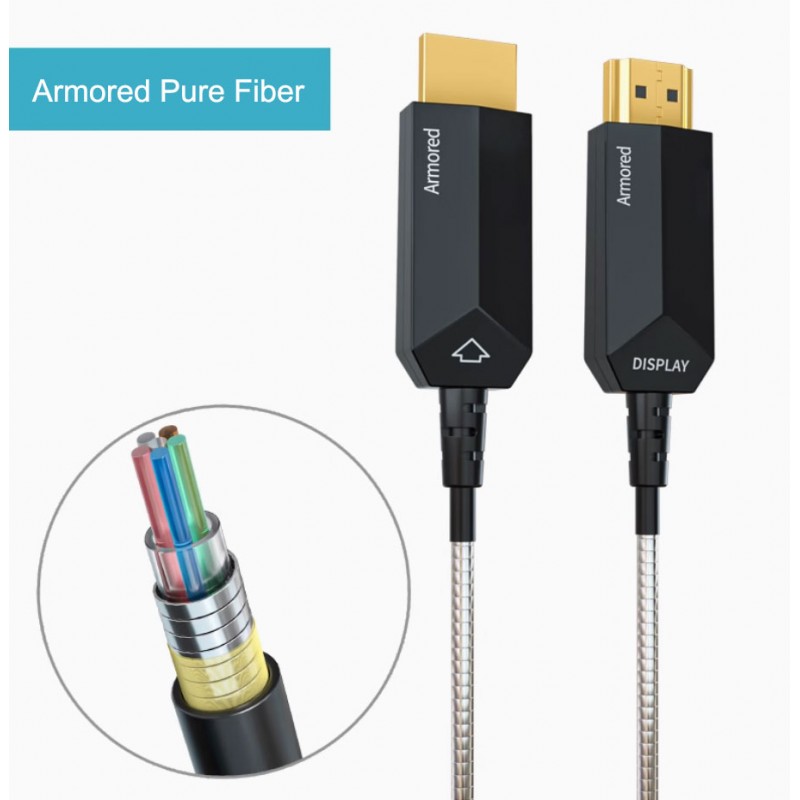

Pure Fiber Armored 4K@60Hz Fixed-end HDMI 2.0 Active Optical Cable

The Pure Fiber HDMI 2.0 Active Optical Cable is an HDMI 2.0-based active optical cable (AOC) made explicitly for mission-critical, digital signage, and cinematic display applications using a LSZH-graded pure fiber optical cable for high-speed uncompressed data transmission. This high-performance active optical cable supports a high dynamic range (HDR) with digital cinematic initiatives (DCI) that exhibit vibrant images and offer incredible theatrical experiences for movie enthusiasts.

This newly developed fixed-end AOC offers simple plug-and-play installation and delivers true 4K (4096 x 2160) resolution and high-speed video & audio signal transmission up to 500m without any degradation. The unique advantage of the HDMI 2.0 AOC is that it doesn’t require any external power supply to operate as it obtains power from the source device to transmit HDMI 2.0 signal. Also, the HDMI 2.0 AOC features extended display identification data (EDID) and high-bandwidth digital content protection (HDCP 2.2) compliance for a secure connection between the source and visual display.

Specifications

• Product Name: Pure Fiber Armored HDMI 2.0 AOC
• Connector Type: HDMI Type A to Type A
• Connector Gender: Male-to-Male
• Connector: Gold-plated copper

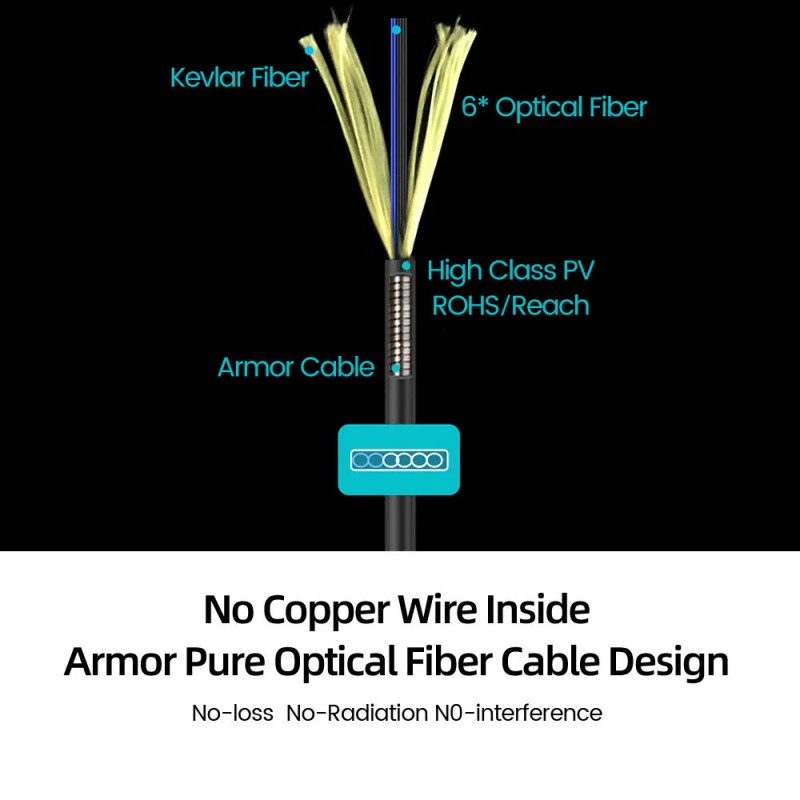

• Wire: 6-core Pure Fiber Optic Cable
• Data Transfer Rate: 18 Gigabits Per Second
• Shape: Round
• Color: RGB 4:4:4 12Bit
• Resolution: 4K60Hz
• Tensile Load: 400N
• Max Length: 500m
• Working Temperature: -20~+80°C
• Power Consumption: 250mw

Features

• Supports up to 4K DCI (4096x2160) @60Hz, (RGB & YCbCr : 4:4:4)
• Transmits data signals up to 500m over pure fiber cable
• Supports HDMI 2.0 standards
• Supports HDR at 10 bit or 12 bit
• Supports 3D contents transmission
• Complies with CEC, EDID, and HDCP 2.2
• Offers 500N pulling and crush load strength with bending radius of 6mm (0.23”)

Applications

• Professional AV System
• Digital Signage
• Home Theatre
• Facility Automation System
